Equalize Junction

The Equalize Junction tool allows users to equalize the elevation of roads within a junction. It adjusts the elevation of the connecting roads to create a more consistent elevation across the junction.

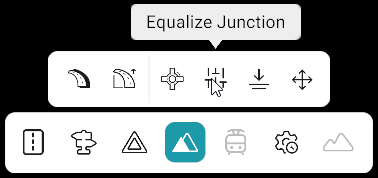

Bottom toolbar: Elevation Tools category active; sub-toolbar with Equalize Junction tool selected

Warning

When creating a map from scratch, the junction/Junction ID will not appear until the map is saved.

Open the Equalize Junction Tool

  1. Click Elevation Tools.
  2. Click a road in the junction.
  3. Select Equalize Junction.
  4. Click any road that is part of the junction.
  5. The Junction panel opens on the left side of the screen.
  6. All roads present in the junction are listed in the Junction panel.
  7. Click a Road ID in the Junction panel to highlight the corresponding road on the map.

Equalize Junction Elevation

  1. Click Equalize.
  2. The elevation of all roads present in the junction is equalized to create a consistent elevation across the connecting roads.

Reset the Elevation

  1. Click Reset.
  2. The elevation is restored to the value that was present before the equalization operation was applied.

Tool Actions

Action Description
Equalize Equalizes the elevation of all roads present in the junction to create a consistent elevation across the connecting roads.
Reset Restores the elevation to the value that was present before equalization was applied.

Notes

  • Selecting a Road ID from the Junction panel only highlights the corresponding road on the map; it does not limit the equalization operation to that road.
  • Reset does not reset the elevation to 0. It restores the elevation value from before the equalization operation.
  • The required junction can be searched using the Junction ID search bar in the left-side Junction panel.
  • Equalize applies to the entire selected junction.
