Controllers (Currently Not Available)

Controllers are used to manage Traffic Signals within a Junction. They define which signals belong to a specific Junction and help coordinate their behaviour and timing.

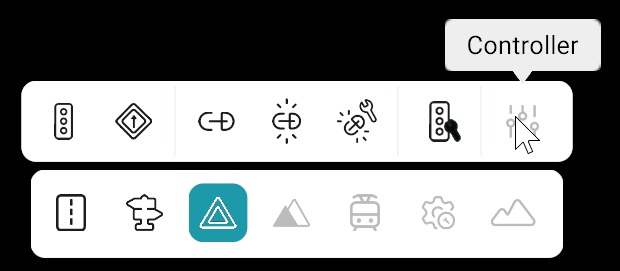

Signals bar: Controller tool selected; bottom toolbar with Signals category active

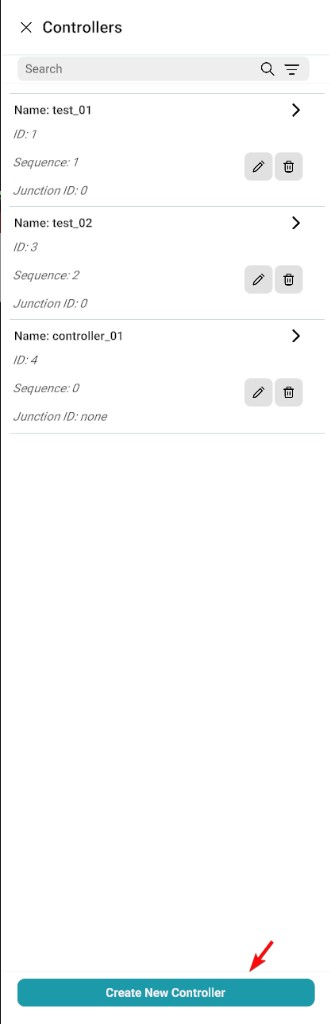

Controller Panel

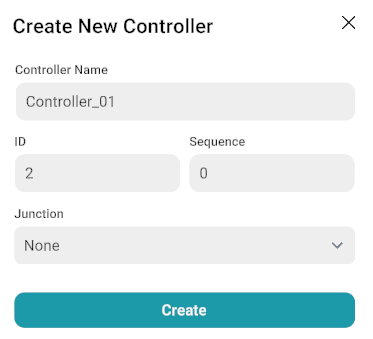

In the Controller panel (available from the Left sidebar), you can create and manage controllers. The map displays all available Junction IDs, which can be assigned to controllers for signal management.

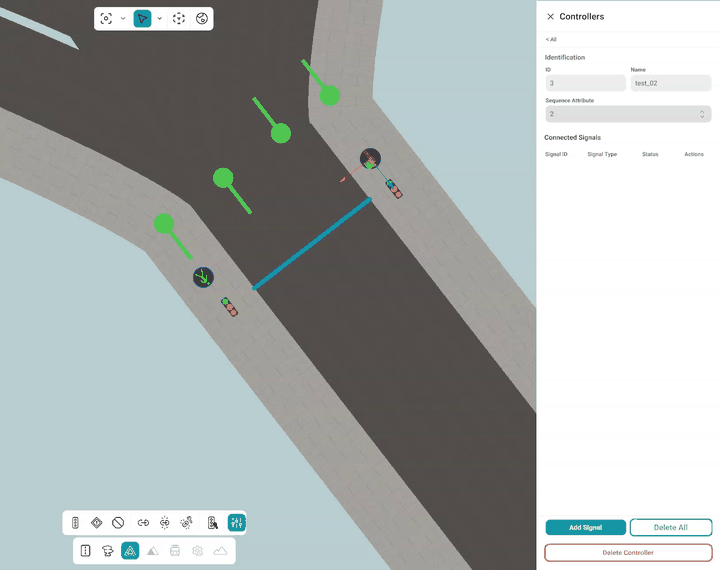

How to Assign Signals to a Controller

Follow these steps:

  1. View the available Junction IDs on the map.
  2. Select the required Junction ID from the Map Junction list.
  3. The selected junction will appear in the Junction bar.
  4. Add all Traffic Signals that belong to this junction.
  5. The selected signals will appear in the Signals bar.

Note

This feature is currently disabled.
