Link & Snap

The Link & Snap feature allows you to connect multiple Traffic Signs and Traffic Lights to a pole and automatically position them in a structured way. After linking, you may still need to adjust the Z-offset for proper vertical placement of all items.

For linking without snapping, see Link. For automatic vertical alignment, see Link, Snap & Adjust.

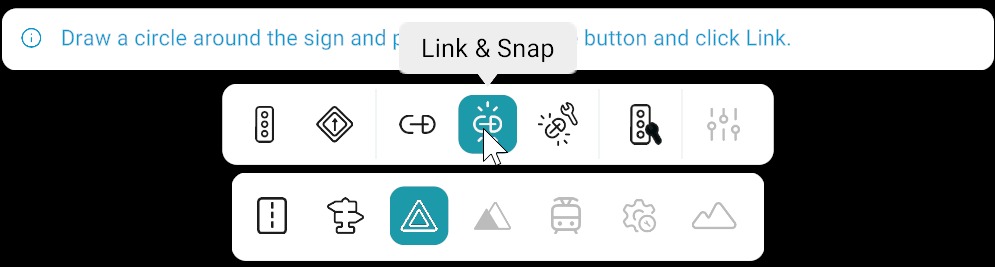

Signals bar: Link & Snap tool selected with selection hint; bottom toolbar with Signals category active

Follow these steps:

  1. Activate the Link & Snap tool from signal bar.
  2. Draw circular selection around the desired pole, traffic signs, traffic lights.
  3. Click on Link button from right panel.

All selected Traffic Signs and Traffic Lights will be linked and automatically snapped to the Pole.

After Linking

Adjust Z-offset for each linked sign or light to fine-tune height on the pole. Horizontal placement is handled by the snap step.
